Nitrogen filling system

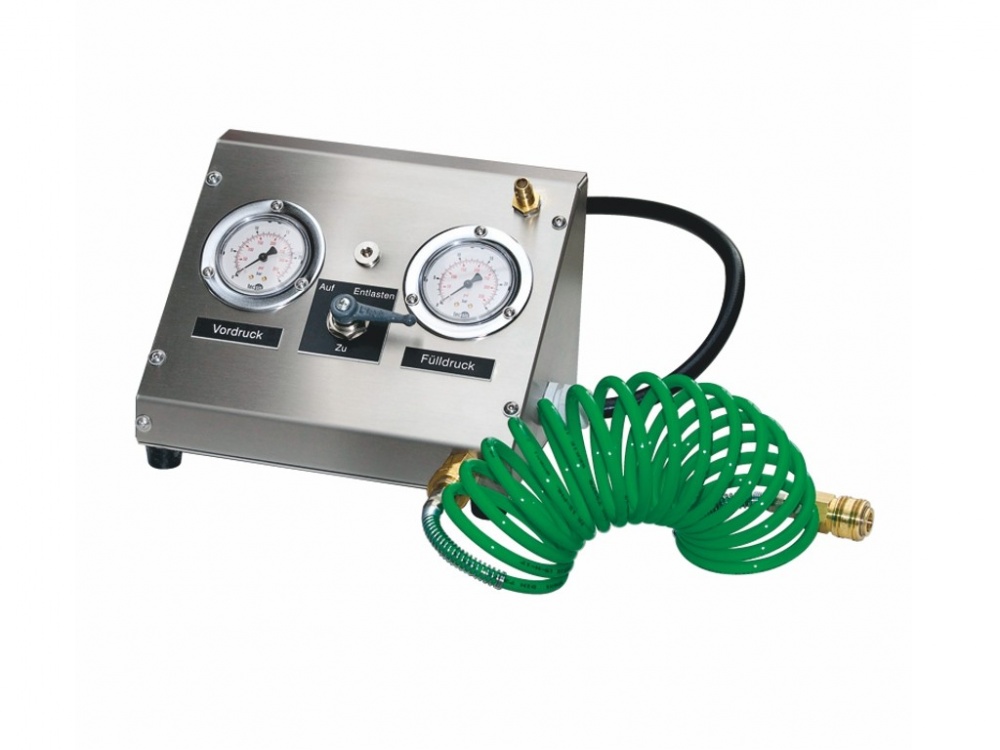

Nitrogen filling system  - 1
Nitrogen filling system - 1
Nitrogen filling system
The SFA Nitrogen filling system is used to fill fire extinguishers of any type with nytrogen. A safety valve... More
The SFA Nitrogen filling system is used to fill fire extinguishers of any type with nytrogen. A safety valve eliminates overfilling. The filling process can be checked via the filling pressure gauge.

Complies with EN ISO 12100-1, EN ISO 12100-2.
Product code:1830101100
Manf. code:186301
Price:Up for discussion
Description
The SFA Nitrogen filling system is used to fill fire extinguishers of any type with nytrogen.
The SFA Nitrogen filling system consists of a body frame, which includes:
  1. two pressure gauges (show filling and admission pressure)
  2. valve with 3 positions (closed, open, release)
  3. safety valve
Operating principle:
The nitrogen filling unit SFA is connected by its supply hose with plug-in coupling to the pressure reducer of the nitrogen supply bottle. The input pressure gauge indicates the admission pressure. Opening the ball valve fills the fire extinguisher via a connected coiled filling hose and a filling connector. The nessesary pressure is adjusted with the pressure reducer.

Advantages:
  1. High work safety - no overfilling of containers
  2. Integrated release of the filling line
  3. The filling process can be checked via the filling pressure gauge. A safety valve eliminates overfilling. After the filling process is ended the filling hose is forcibly released when the ball valve is closed.
Complies with EN ISO 12100-1, EN ISO 12100-2.
Produced by BRANDSCHUTZTECHNIK MULLER, Germany.
Supplied with the Manufacturer's Quality Certificate, Passport and technological instruction.
Specifications
  • Nitrogen inlet pressure at pressure reducer - 200 bar;
  • Nitrogen filling pressure - adjustable at the pressure reducer according to instruction of fire extinguisher manufacturer;
  • Safety valve - 18 bar;
  • Coiled filling hose - 1.5 m;
  • Height - 185 mm;
  • Width - 300 mm;
  • Depth - 230 mm;
  • Weight - 5 kg;
  • High-grade steel;
