CFA 2 сarbon dioxide stationary filling system
5
5
5
CFA 2 сarbon dioxide stationary filling system - 1

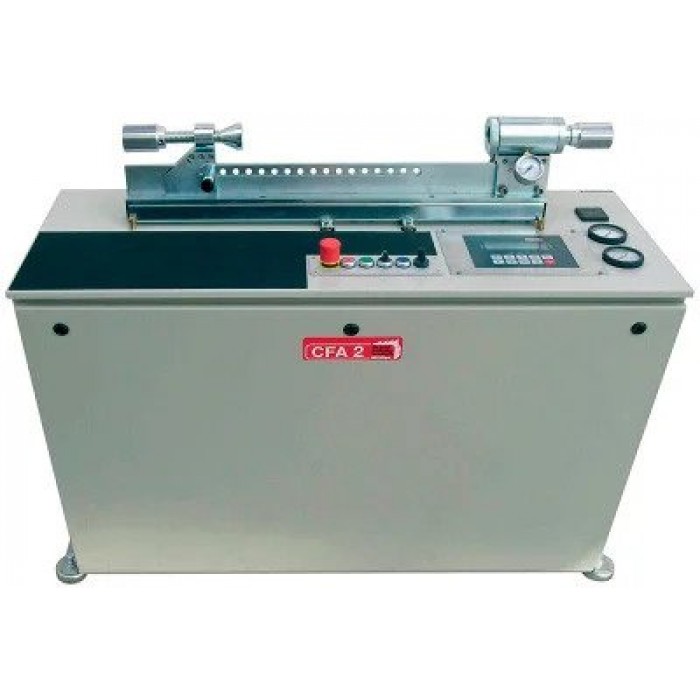

CFA 2 сarbon dioxide stationary filling system
CFA 2 сarbon dioxide stationary filling system can be used with all types
of internal CO2 cartridges, CO2 fi... More
CFA 2 сarbon dioxide stationary filling system can be used with all types of internal CO2 cartridges, CO2 fire extinguishers from 2 to 6 kg and external CO2 bottles.
Product code:1830104102
Manf. code:186125
Price:Up for discussion
Description
The CFA 2 is trully versatile device. The system has three different universal filling heads: F1M is used with internal CO2 cartridges, F2 serves as an accessory for external CO2 cylinders with rotary valve, while F3 is an accessory for CO2 fire extinguishers and cylinders up to 6 kg.
At the inlet of the system there is a stainless steel filter that protects the pump from impurities from the storage cylinders or the CO2 tank. Digital scales allow you to program the nesseccary filling weight for the most precise filling process. In addition, you can also regulate the filling speed of the cylinders by controlling the rotation speed of the motor.
At the inlet of the system there is a stainless steel filter that protects the pump from impurities from the storage cylinders or the CO2 tank. Digital scales allow you to program the nesseccary filling weight for the most precise filling process. In addition, you can also regulate the filling speed of the cylinders by controlling the rotation speed of the motor.
Specifications
- Electric motor - 230 V, 50H z, 1,5 kW, 1400 rpm;
- 5 m Сable Feed, oil and acid-resistant - H07RN-F 3 G 1,5 mm²;
- Mechanical safety valve - 2 x 150 bar;
- Hight - 1070 mm;
- Width - 1320 mm;
- Depth - 460 mm;
- Weight - 141 kg;
- Filling power - 4 kg/min;
- Colour: RAL 7032 pebble grey, hammer finish;
- IP rate - IP54;
