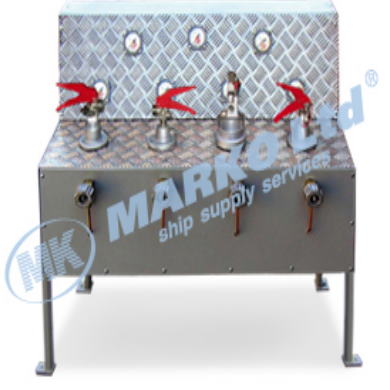

Lock-start gear diagnostic device
The lock-start gear diagnostic device is used to verify the functionality and leak test of all types of fire... More
The lock-start gear diagnostic device is used to verify the functionality and leak test of all types of fire extinguishers lock-start gears: carbon dioxide, powder, foam.
It meets the requirements of DSTU 4297-2004, Appendix A, p.A.2, p / n 9.
Product code:1830107100
Price:Up for discussion
Description
The stand for testing the LPU is manufactured in two modifications:
  1. Lock-start gear diagnostic device-2 MK for simultaneous testing of two fire extinguishers of various types;
  2. Lock-start gear diagnostic device-4 MK; for simultaneous testing of four fire extinguishers of various types;
The stand is made using composite materials and aluminum alloys and is a necessary technological equipment for fire extinguisher maintenance points. Equipped with control, operating and manipulation panels, it is simple and easy to use.

The principle of operation is based on the reduction of compressed air with a pressure of less than 150 kg/cm2 (15 MPa) and at least 60 kg/cm2 (6 MPa). By means of a high-pressure hose (standard, 1 m), the stand is connected to a compressed air transport cylinder and a high-pressure receiver located on the right side panel of the stand.

The equipment comes with a quality certificate of the manufacturer and manual for use.
