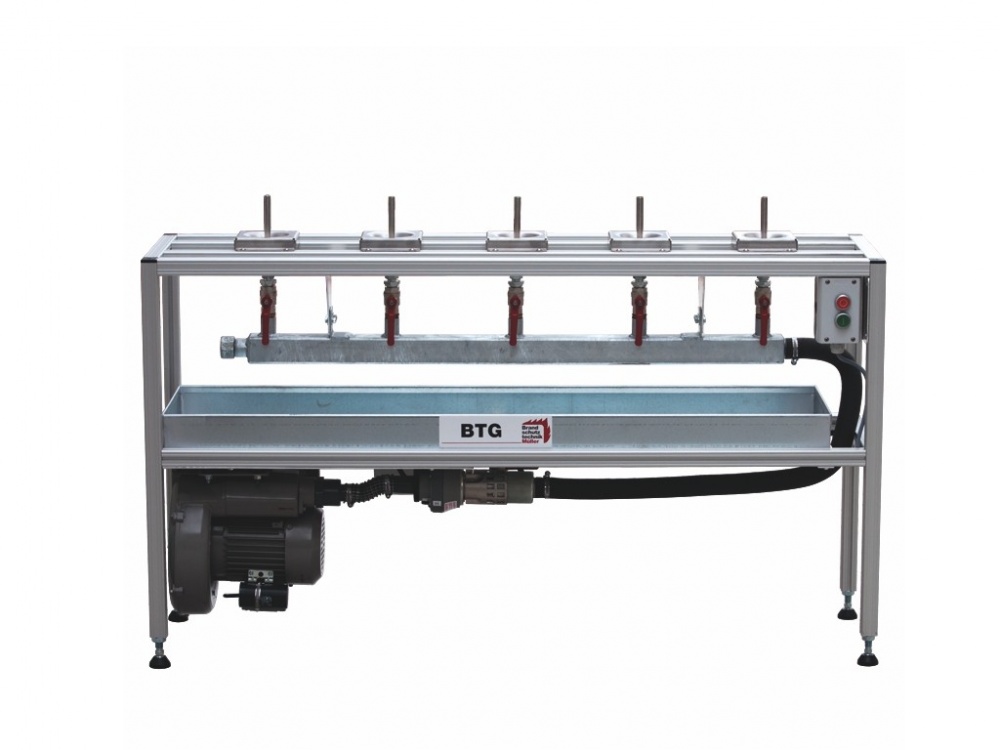

The cylinder drying device - 1
The cylinder drying device - 1

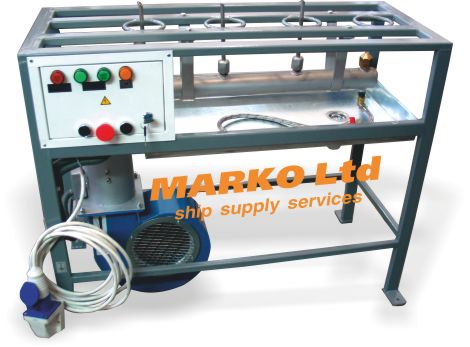

The cylinder drying device - 2
The cylinder drying device - 2
The cylinder drying device - 3
The cylinder drying device - 3
The cylinder drying device
The cylinder drying device BTG is used to dry steel or aluminium compressed gas cylinders with hot air after... More
The cylinder drying device BTG is used to dry steel or aluminium compressed gas cylinders with hot air after hydrotesting.

Complies with DSTU 4297-2004, app A, p.A.2, s/n 3.4, as well as EN ISO 12100-1, EN ISO 12100-2, EN 60204.

Product code:1830110100
Manf. code:186532
Price:Up for discussion
Description
The cylinder drying device BTG is used to dry steel or aluminium compressed gas cylinders with hot air after hydrotesting. A side channel compressor with thermal monitor blows hot air into the cylinders. The drying time depends on the temperature set by the control electronics and the size of the cylinders. It can be set by timer.

Provides simultaneous drying of up to 5 containers. The wet containers are placed “upside down” over the individually closable air pipes. The residual water is collected in the collecting tank.

Complies with DSTU 4297-2004, app A, p.A.2, s/n 3.4, as well as EN ISO 12100-1, EN ISO 12100-2, EN 60204.
Supplied with the Manufacturer's Quality Certificate, Passport and technological instruction.


Specifications
Side channel compressor:
  • Power supply - 230 V, 50 Hz
  • Power - 0.75 kW
  • Number of revolutions - 2840 rpm
Air heater, adjustable:
  • Power supply - 230 V, 50 Hz
  • Power - 2.2 kW
  • Сable feed line, oil and acid resistant - 5 m
Dimensions:
  • Height: 860 mm
  • Width: 1340 mm
  • Depth: 370 mm
  • Weight: 55 kg
  • Number of cylinders in service - 5 pcs
